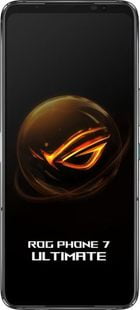

Asus ROG Phone 7 Ultimate
- Screen: 6.78" AMOLED - 1080 x 2448
- SoC: Qualcomm Snapdragon 8 Gen 2
- Camera: 3 (50 MP + 13 MP + 5 MP)
- Battery: 6000 mAh
- OS: Android 13
- Weight: 246 grams (8.68 oz)
Review
Full specifications
Detailed specifications, tests, and benchmarks of the Asus ROG Phone 7 UltimateDisplay
| Type | AMOLED |
| Size | 6.78 inches |
| Resolution | 1080 x 2448 pixels |
| Aspect ratio | 20.4:9 |
| PPI | 395 ppi |
| Refresh rate | 165 Hz |
| Adaptive refresh rate | No |
| Max rated brightness | 1000 nits |
| Max rated brightness in HDR | 1500 nits |
| HDR support | Yes, HDR10+ |
| Screen protection | Gorilla Glass Victus |
| Screen-to-body ratio | 82.2% |
| Display features |
- DCI-P3
- Always-On Display - DC Dimming |
| RGB color space | 99.9% |
| PWM | 513 Hz |
| Response time | 1 ms |
| Contrast | ∞ Infinity |
Design and build
| Height | 173 mm (6.81 inches) |
| Width | 77 mm (3.03 inches) |
| Thickness | 10.3 mm (0.41 inches) |
| Weight | 246 g (8.68 oz) |
| Waterproof | IP54 |
| Advanced cooling | Vapor chamber |
| Rear material | Glass |
| Frame material | Metal |
| Colors | White |
| Fingerprint scanner | Yes, in-display |
Performance
| Chipset | Qualcomm Snapdragon 8 Gen 2 |
| Max clock | 3200 MHz |
| CPU cores | 8 (1 + 2 + 2 + 3) |
| Architecture |
- 3 cores at 2 GHz: Cortex-A510
- 2 cores at 2.8 GHz: Cortex-A710 - 2 cores at 2.8 GHz: Cortex-A715 - 1 core at 3.2 GHz: Cortex-X3 |
| L3 cache | 8 MB |
| Lithography process | 4 nanometers |
| Graphics | Adreno 740 |
| GPU shading units | 2560 |
| GPU clock | 680 MHz |
| FLOPS | ~3481.6 GFLOPS |
Benchmarks
| CPU | 406281 |
| GPU | 611862 |
| Memory | 317813 |
| UX | 288030 |
| Total score | 1610648 |
| Max surface temperature | 34.4 °C |
| Stability | 93% |
| Graphics test | 80 FPS |
| Graphics score | 13366 |
Memory
| RAM size | 16 GB |
| Memory type | LPDDR5X |
| Channels | 4 |
| Storage size | 512 GB |
| Storage type | UFS 4.0 |
| Memory card | No |
Software
| Operating system | Android 13 |
| OS size | 28 GB |
Battery
| Capacity | 6000 mAh |
| Max charge power | 65 W |
| Battery type | Li-Po |
| Replaceable | No |
| Wireless charging | No |
| Reverse charging | Yes |
| Fast charging | Yes (68% in 30 min) |
| Full charging time | 1:02 hr |
| Web browsing | 14:08 hr |
| Watching video | 23:09 hr |
| Gaming | 06:49 hr |
| Standby | 128 hr |
Camera
| Matrix | 50 megapixels |
| Image resolution | 8192 x 6144 |
| Zoom | Digital |
| Flash | LED |
| Stabilization | Digital |
| 8K video recording | Up to 24FPS |
| 4K video recording | Up to 60FPS |
| 1080p video recording | Up to 60FPS |
| Slow motion | 480 FPS (720p) |
| Angle of widest lens | 120° |
| Lenses | 3 (50 MP + 13 MP + 5 MP) |
| Wide (main) lens |
- 50 MP
- Aperture: f/1.9 - Focal length: 24 mm - Pixel size: 1 micron - Sensor: 1/1.56", Sony IMX766 (Exmor-RS CMOS) - Phase autofocus |
| Ultra-wide lens |
- 13 MP
- Aperture: f/2.2 - Focal length: 13 mm - Pixel size: 1.12 micron - Sensor: 1/3.06", Omnivision OV13B10 (PureCel) |
| Macro lens |
- 5 MP
- Aperture: f/2.0 - Pixel size: 1.12 micron - Sensor: 1/5", Samsung S5K5E9 (ISOCELL CMOS) |
| Camera features |
- Bokeh mode
- Pro mode |
| Megapixels | 32 megapixels |
| Aperture | f/2.5 |
| Focal length | 29 mm |
| Pixel size | 0.7 microns |
| Sensor type | PureCel |
| Sensor size | 1/3.2" |
| Video resolution | 1080p (Full HD) at 30 FPS |
Connectivity
| Wi-Fi standard | Wi-Fi 7 (802.11 a/b/g/n/ac/ax/be) |
| Wi-Fi features |
- Dual Band
- Wi-Fi MiMO - Wi-Fi Direct - Wi-Fi Hotspot - Wi-Fi Display |
| Bluetooth version | 5.3 |
| Bluetooth features | LE |
| USB type | USB Type-C |
| USB version | 3.1 |
| USB features |
- Charging
- USB-Storage mode - OTG |
| GPS | GPS, GLONASS, Beidou, Galileo, QZSS, NAVIC |
| NFC * | Yes |
| Infrared port | No |
| Number of SIM * | 2 |
| Type of SIM card | Nano |
| Multi SIM mode | Standby |
| eSIM support * | No |
| Hybrid slot | No |
| LTE Cat * | 20 |
| 2G network | EDGE/GPRS/GSM (850, 900, 1800, 1900 MHz) |
| 3G network | WCDMA (HSDPA) 800 (19)/ 850(5/6) / 900(8) / 1700(4) / 1900 (2) / 2100 (1) |
| 4G network | LTE 1(2100), 2(1900), 3(1800), 4(1700/2100), 5(850), 7(2600), 8(900), 12(700), 17(700), 18(800), 19(800), 20(800), 25(1900), 26(850), 28(700), 32(1500), 66 (1700/2100), 34(2000), 38(2600), 39(1900), 40(2300), 41(2500),42(3500), 43, 48(3600) |
| 5G support | Yes |
Sound
| Speakers | Stereo |
| Headphone audio jack | Yes |
| FM radio | No |
| Dolby Atmos | Yes |
Speakers test
Other
| Category | Flagship |
| Announced | April 2023 |
| Release date | June 2023 |
| Sensors |
- Proximity sensor
- Gyroscope - Accelerometer - Ambient light sensor - Compass - Fingerprint |
| Bundled charger | Yes, 65 W |
*
Disclaimer!
Some specifications of the ROG Phone 7 Ultimate may differ by country or region
