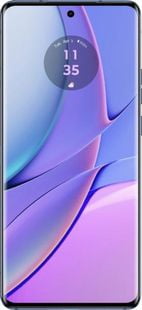

Motorola Edge 40
- Screen: 6.55" POLED - 1080 x 2400
- SoC: MediaTek Dimensity 8020
- Camera: 2 (50 MP + 13 MP)
- Battery: 4400 mAh
- OS: Android 13
- Weight: 167 grams (5.89 oz)
Review
We may receive a commission from Amazon for purchases made using the links below, but this has no bearing on our assessment methodology.
Full specifications
Detailed specifications, tests, and benchmarks of the Motorola Edge 40Display
| Type | POLED |
| Size | 6.55 inches |
| Resolution | 1080 x 2400 pixels |
| Aspect ratio | 20:9 |
| PPI | 402 ppi |
| Refresh rate | 144 Hz |
| Adaptive refresh rate | No |
| Max rated brightness | 500 nits |
| Max rated brightness in HDR | 1200 nits |
| HDR support | Yes, HDR10+ |
| Screen protection | Corning Gorilla Glass 5 |
| Screen-to-body ratio | 90.8% |
| Display features |
- DCI-P3
- Always-On Display - DC Dimming |
| RGB color space | 97.1% |
| PWM | 144 Hz |
| Response time | 1 ms |
| Contrast | ∞ Infinity |
Design and build
| Height | 158.43 mm (6.24 inches) |
| Width | 71.99 mm (2.83 inches) |
| Thickness | 7.49 mm (0.29 inches) |
| Weight | 167 g (5.89 oz) |
| Waterproof | IP68 |
| Rear material | Plastic |
| Frame material | Metal |
| Colors | Black, Blue, Green, Red |
| Fingerprint scanner | Yes, in-display |
Performance
| Chipset | MediaTek Dimensity 8020 |
| Max clock | 2600 MHz |
| CPU cores | 8 (4 + 4) |
| Architecture |
- 4 cores at 2 GHz: Cortex-A55
- 4 cores at 2.6 GHz: Cortex-A78 |
| L3 cache | 8 MB |
| Lithography process | 6 nanometers |
| Graphics | Mali-G77 MP9 |
| GPU shading units | 576 |
| GPU clock | 850 MHz |
| FLOPS | ~979.2 GFLOPS |
Benchmarks
| CPU | 214468 |
| GPU | 211997 |
| Memory | 156087 |
| UX | 179138 |
| Total score | 754084 |
| Max surface temperature | 49.6 °C |
| Stability | 98% |
| Graphics test | 26 FPS |
| Graphics score | 4464 |
| Web score | 14972 |
| Video editing | 7876 |
| Photo editing | 46515 |
| Data manipulation | 9747 |
| Writing score | 18773 |
Memory
| RAM size | 8 GB |
| Memory type | LPDDR4X |
| Memory clock | 2133 MHz |
| Channels | 2 |
| Storage size | 128, 256 GB |
| Storage type | UFS 3.1 |
| Memory card | No |
Software
| Operating system | Android 13 |
| ROM | My UX |
| OS size | 22 GB |
Battery
| Capacity | 4400 mAh |
| Max charge power | 68 W |
| Battery type | Li-Po |
| Replaceable | No |
| Wireless charging | Yes (15 W) |
| Reverse charging | No |
| Fast charging | Yes (58% in 15 min) |
| Full charging time | 0:40 hr |
| Web browsing | 10:56 hr |
| Watching video | 16:18 hr |
| Gaming | 04:40 hr |
| Standby | 111 hr |
Camera
| Matrix | 50 megapixels |
| Image resolution | 8192 x 6144 |
| Zoom | Digital |
| Flash | LED |
| Stabilization | Optical |
| 8K video recording | No |
| 4K video recording | Up to 30FPS |
| 1080p video recording | Up to 60FPS |
| Slow motion | 240 FPS (720p) |
| Angle of widest lens | 120° |
| Lenses | 2 (50 MP + 13 MP) |
| Wide (main) lens |
- 50 MP
- Aperture: f/1.4 - Pixel size: 1 micron - Sensor: 1/1.55", Omnivision OV50A (CMOS) - Phase autofocus - Optical stabilization |
| Ultra-wide lens |
- 13 MP
- Aperture: f/2.2 - Pixel size: 1.12 micron - Phase autofocus |
| Camera features |
- Bokeh mode
- Pro mode - RAW support |
| Megapixels | 32 megapixels |
| Aperture | f/2.4 |
| Pixel size | 0.7 microns |
| Sensor type | CMOS |
| Video resolution | 2160p (4K) at 30 FPS |
Connectivity
| Wi-Fi standard | Wi-Fi 6E (802.11 a/b/g/n/ac/ax) |
| Wi-Fi features |
- Dual Band
- Wi-Fi Direct - Wi-Fi Hotspot - Wi-Fi Display |
| Bluetooth version | 5.2 |
| Bluetooth features | LE |
| USB type | USB Type-C |
| USB version | 2 |
| USB features |
- Charging
- USB-Storage mode - OTG |
| GPS | GPS, GLONASS, Beidou, Galileo |
| NFC * | Yes |
| Infrared port | No |
| Number of SIM * | 1 |
| Type of SIM card | Nano |
| eSIM support * | Yes |
| Hybrid slot | No |
| 2G network | GSM B2/3/5/8 |
| 3G network | WCDMA B1/2/4/5/8 |
| 4G network | LTE B1/2/3/4/5/7/8/12/13/17/20/26/28/32/38/39/40/41/42/43/66 |
| 5G support | Yes |
Sound
| Speakers | Stereo |
| Headphone audio jack | No |
| FM radio | No |
| Dolby Atmos | Yes |
Speakers test
Other
| Category | Flagship |
| Announced | May 2023 |
| Release date | May 2023 |
| Sensors |
- Proximity sensor
- Gyroscope - Accelerometer - Ambient light sensor - Compass - Fingerprint |
| Bundled charger | Yes, 68 W |
Notes
- The back cover could be made of eco-leather (optionally).
*
Disclaimer!
Some specifications of the Edge 40 may differ by country or region
