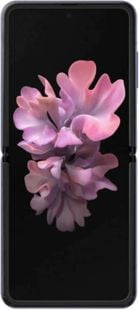

Samsung Galaxy Z Flip
- Screen: 6.7" Dynamic AMOLED - 1080 x 2636
- SoC: Qualcomm Snapdragon 855 Plus
- Camera: 2 (12 MP + 12 MP)
- Battery: 3300 mAh
- OS: Android 12
- Weight: 183 grams (6.46 oz)
Review
Full specifications
Detailed specifications, tests, and benchmarks of the Samsung Galaxy Z FlipDisplay
| Type | Dynamic AMOLED |
| Size | 6.7 inches |
| Resolution | 1080 x 2636 pixels |
| Aspect ratio | 21.9:9 |
| PPI | 425 ppi |
| Refresh rate | 60 Hz |
| Adaptive refresh rate | No |
| Max rated brightness | 700 nits |
| HDR support | Yes, HDR10+ |
| Screen protection | Corning Gorilla Glass 6 |
| Screen-to-body ratio | 82.5% |
| Display features |
- DCI-P3
- Always-On Display |
| RGB color space | 98.8% |
| PWM | 145 Hz |
| Response time | 4.2 ms |
| Contrast | ∞ Infinity |
Design and build
| Height | 167.3 mm (6.59 inches) |
| Width | 73.6 mm (2.9 inches) |
| Thickness | 7.2 mm (0.28 inches) |
| Weight | 183 g (6.46 oz) |
| Waterproof | No |
| Rear material | Glass |
| Frame material | Metal |
| Colors | Black, Gold, Blue |
| Fingerprint scanner | Yes, in-button |
Performance
| Chipset | Qualcomm Snapdragon 855 Plus |
| Max clock | 2840 MHz |
| CPU cores | 8 (1 + 3 + 4) |
| Architecture |
- 4 cores at 1.8 GHz: Cortex-A55 (Kryo 485 Silver)
- 3 cores at 2.42 GHz: Cortex-A76 (Kryo 485 Gold) - 1 core at 2.96 GHz: Cortex-A76 (Kryo 485 Gold) |
| L3 cache | 2 MB |
| Lithography process | 7 nanometers |
| Graphics | Adreno 640 |
| GPU shading units | 768 |
| GPU clock | 687 MHz |
| FLOPS | ~1036.8 GFLOPS |
Benchmarks
| CPU | 175719 |
| GPU | 165438 |
| Memory | 115273 |
| UX | 139253 |
| Total score | 595656 |
| Max surface temperature | 41.3 °C |
| Stability | 73% |
| Graphics test | 12 FPS |
| Graphics score | 2121 |
Memory
| RAM size | 8 GB |
| Memory type | LPDDR5 |
| Memory clock | 3200 MHz |
| Channels | 2 |
| Storage size | 256 GB |
| Storage type | UFS 3.0 |
| Memory card | No |
Software
| Operating system | Android 10.0 (Can be upgraded to Android 12) |
| ROM | One UI 4.1.1 |
| OS size | 32.9 GB |
Battery
| Capacity | 3300 mAh |
| Max charge power | 15 W |
| Battery type | Li-Ion |
| Replaceable | No |
| Wireless charging | Yes (15 W) |
| Reverse charging | Yes, (wireless) |
| Fast charging | Yes (60% in 30 min) |
| Full charging time | 1:25 hr |
| Web browsing | 09:27 hr |
| Watching video | 10:08 hr |
| Gaming | 03:14 hr |
| Standby | 93 hr |
Camera
| Matrix | 12 megapixels |
| Image resolution | 4000 x 3000 |
| Zoom | Digital |
| Flash | LED |
| Stabilization | Optical |
| 8K video recording | No |
| 4K video recording | Up to 60FPS |
| 1080p video recording | Up to 60FPS |
| Slow motion | 960 FPS (720p) |
| Angle of widest lens | 123° |
| Lenses | 2 (12 MP + 12 MP) |
| Wide (main) lens |
- 12 MP
- Aperture: f/1.8 - Focal length: 27 mm - Pixel size: 1.4 micron - Sensor: 1/2.55" (CMOS) - Phase autofocus (Dual Pixel) - Optical stabilization |
| Ultra-wide lens |
- 12 MP
- Aperture: f/2.2 - Focal length: 22 mm - Pixel size: 1.12 micron |
| Camera features |
- Bokeh mode
- Pro mode - RAW support |
| Samples | Photo samples of Samsung Galaxy Z Flip from DxOMark |
| Megapixels | 10 megapixels |
| Image resolution | 2592 x 3872 |
| Aperture | f/2.4 |
| Focal length | 26 mm |
| Pixel size | 1.22 microns |
| Sensor type | CMOS |
| Video resolution | 2160p (4K) at 30 FPS |
DxOMark camera tests
Connectivity
| Wi-Fi standard | Wi-Fi 5 (802.11 b/g/n/ac) |
| Wi-Fi features |
- Wi-Fi MiMO
- Wi-Fi Direct - Wi-Fi Hotspot - Wi-Fi Display |
| Bluetooth version | 5 |
| Bluetooth features | LE, A2DP |
| USB type | USB Type-C |
| USB version | 2 |
| USB features |
- Charging
- USB-Storage mode - OTG |
| GPS | GPS, GLONASS, Beidou, Galileo |
| NFC * | Yes |
| Infrared port | No |
| Number of SIM * | 2 |
| Type of SIM card | Nano |
| Multi SIM mode | Standby |
| eSIM support * | Yes |
| Hybrid slot | No |
| LTE Cat * | 16 |
| 2G network | GSM 850 / 900 / 1800 / 1900 |
| 3G network | HSDPA 850 / 900 / 1700(AWS) / 1900 / 2100 |
| 4G network | LTE band 1(2100), 2(1900), 3(1800), 4(1700/2100), 5(850), 7(2600), 8(900), 12(700), 13(700), 14(700), 17(700), 18(800), 19(800), 20(800), 25(1900), 26(850), 28(700), 29(700), 30(2300), 34(2000), 38(2600), 39(1900), 40(2300), 41(2500), 46(5200), 66(1700/2100), 71(600) |
| 5G support | Yes |
Sound
| Speakers | Stereo |
| Headphone audio jack | No |
| FM radio | No |
| Dolby Atmos | Yes |
Speakers test
Other
| Category | Flagship |
| Announced | February 2020 |
| Release date | May 2020 |
| SAR (head) | 0.37 W/kg |
| SAR (body) | 1.55 W/kg |
| Sensors |
- Hall-effect sensor
- Barometer - Proximity sensor - Gyroscope - Accelerometer - Ambient light sensor - Compass - Fingerprint |
*
Disclaimer!
Some specifications of the Galaxy Z Flip may differ by country or region
