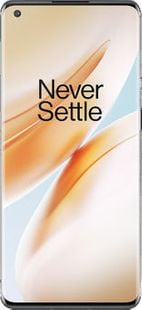

OnePlus 8
- Screen: 6.55" AMOLED - 1080 x 2400
- SoC: Qualcomm Snapdragon 865
- Camera: 3 (48 MP + 16 MP + 2 MP)
- Battery: 4300 mAh
- OS: Android 13
- Weight: 180 grams (6.35 oz)
Review
Full specifications
Detailed specifications, tests, and benchmarks of the OnePlus 8Display
| Type | AMOLED |
| Size | 6.55 inches |
| Resolution | 1080 x 2400 pixels |
| Aspect ratio | 20:9 |
| PPI | 402 ppi |
| Refresh rate | 90 Hz |
| Adaptive refresh rate | No |
| Max rated brightness | 1300 nits |
| HDR support | Yes, HDR10+ |
| Screen protection | Corning Gorilla Glass 5 |
| Screen-to-body ratio | 88.7% |
| Display features |
- DCI-P3
- Always-On Display - DC Dimming |
| RGB color space | 97.7% |
| PWM | 373 Hz |
| Response time | 2.8 ms |
| Contrast | ∞ Infinity |
Design and build
| Height | 160.2 mm (6.31 inches) |
| Width | 72.9 mm (2.87 inches) |
| Thickness | 8.5 mm (0.33 inches) |
| Weight | 180 g (6.35 oz) |
| Waterproof | No |
| Rear material | Glass |
| Frame material | Metal |
| Colors | Black, Silver, Blue, Green |
| Fingerprint scanner | Yes, in-display |
Performance
| Chipset | Qualcomm Snapdragon 865 |
| Max clock | 2840 MHz |
| CPU cores | 8 (1 + 3 + 4) |
| Architecture |
- 4 cores at 1.8 GHz: Kryo 585 Silver (Cortex-A55)
- 3 cores at 2.42 GHz: Kryo 585 Gold (Cortex-A77) - 1 core at 2.84 GHz: Kryo 585 Prime (Cortex-A77) |
| L3 cache | 4 MB |
| Lithography process | 7 nanometers |
| Graphics | Adreno 650 |
| GPU shading units | 1024 |
| GPU clock | 587 MHz |
| FLOPS | ~1202.1 GFLOPS |
Benchmarks
| CPU | 212291 |
| GPU | 213103 |
| Memory | 138076 |
| UX | 165475 |
| Total score | 723987 |
| Max surface temperature | 35.5 °C |
| Stability | 99% |
| Graphics test | 23 FPS |
| Graphics score | 3843 |
| Web score | 8278 |
| Video editing | 5726 |
| Photo editing | 28995 |
| Data manipulation | 9321 |
| Writing score | 13683 |
Memory
| RAM size | 8, 12 GB |
| Memory type | LPDDR4X |
| Memory clock | 1866 MHz |
| Channels | 2 |
| Storage size | 128, 256 GB |
| Storage type | UFS 3.0 |
| Memory card | No |
Software
| Operating system | Android 10.0 (Can be upgraded to Android 13) |
| ROM | OxygenOS 13 |
| OS size | 23 GB |
Battery
| Capacity | 4300 mAh |
| Max charge power | 30 W |
| Battery type | Li-Po |
| Replaceable | No |
| Wireless charging | No |
| Reverse charging | No |
| Fast charging | Yes (50% in 22 min) |
| Full charging time | 0:52 hr |
| Web browsing | 11:46 hr |
| Watching video | 15:37 hr |
| Gaming | 03:42 hr |
| Standby | 86 hr |
Camera
| Matrix | 48 megapixels |
| Image resolution | 8000 x 6000 |
| Zoom | Digital |
| Flash | Dual LED |
| Stabilization | Optical |
| 8K video recording | No |
| 4K video recording | Up to 60FPS |
| 1080p video recording | Up to 240FPS |
| Slow motion | 960 FPS (720p) |
| Angle of widest lens | 120° |
| Lenses | 3 (48 MP + 16 MP + 2 MP) |
| Wide (main) lens |
- 48 MP
- Aperture: f/1.8 - Focal length: 25 mm - Pixel size: 1.12 micron - Sensor: 1/2.25", Sony IMX586 (Exmor-RS CMOS) - Phase autofocus - Optical stabilization |
| Ultra-wide lens |
- 16 MP
- Aperture: f/2.2 - Focal length: 13 mm - Pixel size: 0.8 micron - Sensor: 1/2.0" (CMOS) - Phase autofocus |
| Macro lens |
- 2 MP
- Aperture: f/2.4 |
| Camera features |
- Bokeh mode
- Pro mode - RAW support |
| Megapixels | 16 megapixels |
| Image resolution | 4920 x 3264 |
| Aperture | f/2.0 |
| Pixel size | 1 microns |
| Sensor type | Exmor-RS CMOS |
| Sensor size | 1/3" |
| Video resolution | 1080p (Full HD) at 30 FPS |
Connectivity
| Wi-Fi standard | Wi-Fi 6 (802.11 a/b/g/n/ac/ax) |
| Wi-Fi features |
- Dual Band
- Wi-Fi Direct - Wi-Fi Hotspot - Wi-Fi Display |
| Bluetooth version | 5.1 |
| Bluetooth features | LE, A2DP |
| USB type | USB Type-C |
| USB version | 3.1 |
| USB features |
- Charging
- USB-Storage mode - OTG |
| GPS | GPS, GLONASS, Beidou, Galileo, SBAS |
| NFC * | Yes |
| Infrared port | No |
| Number of SIM * | 2 |
| Type of SIM card | Nano |
| Multi SIM mode | Standby |
| eSIM support * | No |
| Hybrid slot | No |
| LTE Cat * | 20 |
| 2G network | GSM850, GSM900, GSM1800, GSM1900 |
| 3G network | WCDMA B1, B2, B4、B5, B8, B9, B19 |
| 4G network | LTE 2, 3, 4, 5, 7, 8, 12, 13, 17, 18, 19, 20, 25, 26, 28, 32, 66 |
| 5G support | Yes |
Sound
| Speakers | Stereo |
| Headphone audio jack | No |
| FM radio | No |
| Dolby Atmos | Yes |
Speakers test
Other
| Category | Flagship |
| Announced | April 2020 |
| Release date | April 2020 |
| Sensors |
- Proximity sensor
- Gyroscope - Accelerometer - Ambient light sensor - Compass - Fingerprint |
*
Disclaimer!
Some specifications of the OnePlus 8 may differ by country or region
