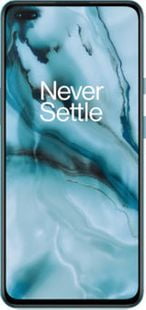

OnePlus Nord
- Screen: 6.44" AMOLED - 1080 x 2400
- SoC: Qualcomm Snapdragon 765G
- Camera: 4 (48 MP + 8 MP + 5 MP + 2 MP)
- Battery: 4115 mAh
- OS: Android 12
- Weight: 184 grams (6.49 oz)
Review
Full specifications
Detailed specifications, tests, and benchmarks of the OnePlus NordDisplay
| Type | AMOLED |
| Size | 6.44 inches |
| Resolution | 1080 x 2400 pixels |
| Aspect ratio | 20:9 |
| PPI | 408 ppi |
| Refresh rate | 90 Hz |
| Adaptive refresh rate | No |
| Max rated brightness | 550 nits |
| HDR support | Yes, HDR10+ |
| Screen protection | Corning Gorilla Glass 5 |
| Screen-to-body ratio | 86.7% |
| Display features |
- DCI-P3
- Always-On Display |
| RGB color space | 100% |
| PWM | 367 Hz |
| Response time | 6.5 ms |
| Contrast | ∞ Infinity |
Design and build
| Height | 158.3 mm (6.23 inches) |
| Width | 73.3 mm (2.89 inches) |
| Thickness | 8.2 mm (0.32 inches) |
| Weight | 184 g (6.49 oz) |
| Waterproof | No |
| Rear material | Glass |
| Frame material | Plastic |
| Colors | Gray, Blue |
| Fingerprint scanner | Yes, in-display |
Performance
| Chipset | Qualcomm Snapdragon 765G |
| Max clock | 2400 MHz |
| CPU cores | 8 (1 + 1 + 6) |
| Architecture |
- 6 cores at 1.8 GHz: Kryo 475 Silver (Cortex-A55)
- 1 core at 2.2 GHz: Kryo 475 Gold (Cortex-A76) - 1 core at 2.4 GHz: Kryo 475 Prime (Cortex-A76) |
| Lithography process | 7 nanometers |
| Graphics | Adreno 620 |
| GPU shading units | 384 |
| GPU clock | 750 MHz |
| FLOPS | ~576 GFLOPS |
Benchmarks
| CPU | 141635 |
| GPU | 36036 |
| Memory | 84720 |
| UX | 118516 |
| Total score | 377356 |
| Max surface temperature | 48.6 °C |
| Stability | 99% |
| Graphics test | 9 FPS |
| Graphics score | 1640 |
Memory
| RAM size | 8, 12 GB |
| Memory type | LPDDR4X |
| Memory clock | 2133 MHz |
| Channels | 2 |
| Storage size | 128, 256 GB |
| Storage type | UFS 2.1 |
| Memory card | No |
Software
| Operating system | Android 10 (Can be upgraded to Android 12) |
| ROM | OxygenOS 12 |
| OS size | 22 GB |
Battery
| Capacity | 4115 mAh |
| Max charge power | 30 W |
| Battery type | Li-Po |
| Replaceable | No |
| Wireless charging | No |
| Reverse charging | No |
| Fast charging | Yes (70% in 30 min) |
| Full charging time | 0:50 hr |
| Web browsing | 11:00 hr |
| Watching video | 14:44 hr |
| Gaming | 04:48 hr |
| Standby | 97 hr |
Camera
| Matrix | 48 megapixels |
| Image resolution | 8000 x 6000 |
| Zoom | Digital |
| Flash | Dual LED |
| Stabilization | Optical |
| 8K video recording | No |
| 4K video recording | Up to 30FPS |
| 1080p video recording | Up to 60FPS |
| Slow motion | 240 FPS (1080p) |
| Angle of widest lens | 119° |
| Lenses | 4 (48 MP + 8 MP + 5 MP + 2 MP) |
| Wide (main) lens |
- 48 MP
- Aperture: f/1.8 - Focal length: 26 mm - Pixel size: 0.8 micron - Sensor: 1/2", Sony IMX586 (Exmor-RS CMOS) - Phase autofocus - Optical stabilization |
| Ultra-wide lens |
- 8 MP
- Aperture: f/2.3 |
| Macro lens |
- 2 MP
- Aperture: f/2.4 |
| Depth lens |
- 5 MP
- Aperture: f/2.4 |
| Camera features |
- Bokeh mode
- Pro mode |
| Samples | Photo samples of OnePlus Nord from DxOMark |
| Megapixels | 32 megapixels |
| Image resolution | 6528 x 4896 |
| Aperture | f/2.5 |
| Sensor type | Exmor-RS CMOS |
| Sensor size | 1/2.8" |
| Video resolution | 2160p (4K) at 30 FPS |
DxOMark camera tests
Connectivity
| Wi-Fi standard | Wi-Fi 5 (802.11 a/b/g/n/ac) |
| Wi-Fi features |
- Dual Band
- Wi-Fi Direct - Wi-Fi Hotspot - Wi-Fi Display |
| Bluetooth version | 5.1 |
| Bluetooth features | LE, A2DP |
| USB type | USB Type-C |
| USB version | 2 |
| USB features |
- Charging
- USB-Storage mode - OTG |
| GPS | GPS, GLONASS, Beidou, Galileo, NAVIC, SBAS |
| NFC * | Yes |
| Infrared port | No |
| Number of SIM * | 2 |
| Type of SIM card | Nano |
| Multi SIM mode | Standby |
| eSIM support * | No |
| Hybrid slot | No |
| LTE Cat * | 18 |
| 2G network | GSM 850 / 900 / 1800 / 1900 - SIM 1 & SIM 2 |
| 3G network | HSDPA 800 / 850 / 900 / 1700(AWS) / 1800 / 1900 / 2100 |
| 4G network | LTE 3, 4, 5, 7, 8, 12, 17, 18, 19, 20, 26, 28, 32, 34, 38, 39, 40, 41, 66 |
| 5G support | Yes |
Sound
| Speakers | Mono |
| Headphone audio jack | No |
| FM radio | No |
| Dolby Atmos | Yes |
Speakers test
Other
| Category | Mid-range |
| Announced | July 2020 |
| Release date | September 2020 |
| SAR (head) | 0.9 W/kg |
| SAR (body) | 1.27 W/kg |
| Sensors |
- Proximity sensor
- Gyroscope - Accelerometer - Ambient light sensor - Compass - Fingerprint |
*
Disclaimer!
Some specifications of the OnePlus Nord may differ by country or region
