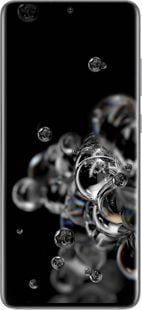

Samsung Galaxy S20 Ultra
- Screen: 6.9" Dynamic AMOLED - 1440 x 3200
- SoC: Samsung Exynos 990
- Camera: 4 (108 MP + 48 MP + 12 MP + 0.3 MP)
- Battery: 5000 mAh
- OS: Android 13
- Weight: 220 grams (7.76 oz)
Review
Full specifications
Detailed specifications, tests, and benchmarks of the Samsung Galaxy S20 UltraDisplay
| Type | Dynamic AMOLED |
| Size | 6.9 inches |
| Resolution | 1440 x 3200 pixels |
| Aspect ratio | 20:9 |
| PPI | 511 ppi |
| Refresh rate | 120 Hz |
| Adaptive refresh rate | No |
| Max rated brightness | 800 nits |
| HDR support | Yes, HDR10+ |
| Screen protection | Corning Gorilla Glass 6 |
| Screen-to-body ratio | 89.9% |
| Display features |
- DCI-P3
- Always-On Display |
| RGB color space | 99.2% |
| PWM | 240 Hz |
| Response time | 6.2 ms |
| Contrast | ∞ Infinity |
Design and build
| Height | 166.9 mm (6.57 inches) |
| Width | 76 mm (2.99 inches) |
| Thickness | 8.8 mm (0.35 inches) |
| Weight | 220 g (7.76 oz) |
| Waterproof | IP68 |
| Advanced cooling | Vapor chamber |
| Rear material | Glass |
| Frame material | Metal |
| Colors | Black, Gray |
| Fingerprint scanner | Yes, in-display |
Performance
| Chipset | Samsung Exynos 990 |
| Max clock | 2730 MHz |
| CPU cores | 8 (2 + 2 + 4) |
| Architecture |
- 4 cores at 2 GHz: Cortex-A55
- 2 cores at 2.5 GHz: Cortex-A76 - 2 cores at 2.73 GHz: Exynos M5 |
| L3 cache | 2 MB |
| Lithography process | 7 nanometers |
| Graphics | Mali-G77 MP11 |
| GPU shading units | 704 |
| GPU clock | 800 MHz |
| FLOPS | ~1126 GFLOPS |
Benchmarks
| CPU | 208351 |
| GPU | 236114 |
| Memory | 139177 |
| UX | 164629 |
| Total score | 743233 |
| Max surface temperature | 38.6 °C |
| Stability | 53% |
| Graphics test | 25 FPS |
| Graphics score | 4319 |
| Web score | 8817 |
| Video editing | 6105 |
| Photo editing | 31559 |
| Data manipulation | 8784 |
| Writing score | 12447 |
Memory
| RAM size | 12, 16 GB |
| Memory type | LPDDR5 |
| Memory clock | 3200 MHz |
| Channels | 2 |
| Storage size | 128, 512 GB |
| Storage type | UFS 3.0 |
| Memory card | MicroSD |
| Memory card max size | Up to 1000 GB |
Software
| Operating system | Android 10.0 (Can be upgraded to Android 13) |
| ROM | One UI 4.1 |
| OS size | 23.7 GB |
Battery
| Capacity | 5000 mAh |
| Max charge power | 45 W |
| Battery type | Li-Ion |
| Replaceable | No |
| Wireless charging | Yes (15 W) |
| Reverse charging | Yes, (wireless) |
| Fast charging | Yes (100% in 80 min) |
| Full charging time | 1:20 hr |
| Web browsing | 08:26 hr |
| Watching video | 11:53 hr |
| Gaming | 04:13 hr |
| Standby | 93 hr |
Camera
| Matrix | 108 megapixels |
| Image resolution | 12032 x 9204 |
| Zoom | Optical, 4x |
| Flash | LED |
| Stabilization | Optical |
| 8K video recording | Up to 24FPS |
| 4K video recording | Up to 60FPS |
| 1080p video recording | Up to 60FPS |
| Slow motion | 960 FPS (720p) |
| Angle of widest lens | 120° |
| Lenses | 4 (108 MP + 48 MP + 12 MP + 0.3 MP) |
| Wide (main) lens |
- 108 MP
- Aperture: f/1.8 - Focal length: 26 mm - Pixel size: 0.8 micron - Sensor: 1/1.33", Samsung Bright S5KHM1 (ISOCELL CMOS) - Phase autofocus (Dual Pixel) - Optical stabilization |
| Telephoto lens |
- 48 MP
- Aperture: f/3.5 - Focal length: 103 mm - Pixel size: 0.8 micron - Sensor: 1/2", Sony IMX586 (CMOS) - Phase autofocus - Optical stabilization |
| Ultra-wide lens |
- 12 MP
- Aperture: f/2.2 - Focal length: 13 mm - Pixel size: 1.4 micron |
| Depth lens |
- 0.3 MP
- Aperture: f/1.0 - Pixel size: 5 micron |
| Camera features |
- Bokeh mode
- Pro mode - RAW support |
| Megapixels | 40 megapixels |
| Image resolution | 7864 x 5200 |
| Aperture | f/2.2 |
| Focal length | 26 mm |
| Pixel size | 0.7 microns |
| Sensor type | CMOS |
| Sensor size | 1/2.65" |
| Video resolution | 2160p (4K) at 60 FPS |
Connectivity
| Wi-Fi standard | Wi-Fi 6 (802.11 b/g/n/ac/ax) |
| Wi-Fi features |
- Wi-Fi Direct
- Wi-Fi Display |
| Bluetooth version | 5 |
| Bluetooth features | LE, A2DP |
| USB type | USB Type-C |
| USB version | 3.1 |
| USB features |
- Charging
- USB-Storage mode - OTG |
| GPS | GPS, GLONASS, Beidou, Galileo |
| NFC * | Yes |
| Infrared port | No |
| Number of SIM * | 2 |
| Type of SIM card | Nano |
| Multi SIM mode | Standby |
| eSIM support * | Yes |
| Hybrid slot | Yes |
| LTE Cat * | 22 |
| 2G network | GSM 850 / 900 / 1800 / 1900 - SIM 1 & SIM 2 |
| 3G network | HSDPA 850 / 900 / 1900 / 2100 |
| 4G network | HSDPA 850 / 900 / 1700(AWS) / 1900 / 2100 |
| 5G support | Yes |
Sound
| Speakers | Stereo |
| Headphone audio jack | No |
| FM radio | No |
| Dolby Atmos | Yes |
Speakers test
Other
| Category | Flagship |
| Announced | February 2020 |
| Release date | March 2020 |
| SAR (head) | 0.32 W/kg |
| SAR (body) | 1.56 W/kg |
| Sensors |
- Hall-effect sensor
- Barometer - Proximity sensor - Gyroscope - Accelerometer - Ambient light sensor - Compass - Fingerprint |
*
Disclaimer!
Some specifications of the Galaxy S20 Ultra may differ by country or region
