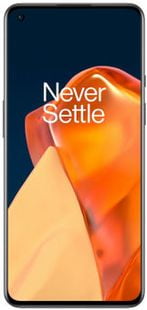

OnePlus 9
- Screen: 6.55" AMOLED - 1080 x 2400
- SoC: Qualcomm Snapdragon 888 5G
- Camera: 3 (48 MP + 50 MP + 2 MP)
- Battery: 4500 mAh
- OS: Android 13
- Weight: 192 grams (6.77 oz)
Review
Full specifications
Detailed specifications, tests, and benchmarks of the OnePlus 9Display
| Type | AMOLED |
| Size | 6.55 inches |
| Resolution | 1080 x 2400 pixels |
| Aspect ratio | 20:9 |
| PPI | 402 ppi |
| Refresh rate | 120 Hz |
| Adaptive refresh rate | Yes |
| Max rated brightness | 500 nits |
| Max rated brightness in HDR | 1100 nits |
| HDR support | Yes, HDR10+ |
| Screen protection | Corning Gorilla Glass 5 |
| Screen-to-body ratio | 87.6% |
| Display features |
- DCI-P3
- Always-On Display - DC Dimming |
| RGB color space | 98.9% |
| PWM | 323 Hz |
| Response time | 13 ms |
| Contrast | ∞ Infinity |
Design and build
| Height | 160 mm (6.3 inches) |
| Width | 74.2 mm (2.92 inches) |
| Thickness | 8.7 mm (0.34 inches) |
| Weight | 192 g (6.77 oz) |
| Waterproof | No |
| Rear material | Glass |
| Frame material | Plastic |
| Colors | Black, Blue, Purple |
| Fingerprint scanner | Yes, in-display |
Performance
| Chipset | Qualcomm Snapdragon 888 5G |
| Max clock | 2840 MHz |
| CPU cores | 8 (1 + 3 + 4) |
| Architecture |
- 4 cores at 1.8 GHz: Kryo 680 Silver (Cortex-A55)
- 3 cores at 2.42 GHz: Kryo 680 Gold (Cortex-A78) - 1 core at 2.84 GHz: Kryo 680 Prime (Cortex-X1) |
| L3 cache | 4 MB |
| Lithography process | 5 nanometers |
| Graphics | Adreno 660 |
| GPU shading units | 1024 |
| GPU clock | 840 MHz |
| FLOPS | ~1622 GFLOPS |
Benchmarks
| CPU | 196735 |
| GPU | 240099 |
| Memory | 131487 |
| UX | 153591 |
| Total score | 714730 |
| Max surface temperature | 48.8 °C |
| Stability | 55% |
| Graphics test | 34 FPS |
| Graphics score | 5761 |
| Web score | 10622 |
| Video editing | 6062 |
| Photo editing | 25759 |
| Data manipulation | 11087 |
| Writing score | 15616 |
Memory
| RAM size | 8, 12 GB |
| Memory type | LPDDR5 |
| Memory clock | 2750 MHz |
| Channels | 4 |
| Storage size | 128, 256 GB |
| Storage type | UFS 3.1 |
| Memory card | No |
Software
| Operating system | Android 11 (Can be upgraded to Android 13) |
| ROM | OxygenOS 13 |
| OS size | 35 GB |
Battery
| Capacity | 4500 mAh |
| Max charge power | 65 W |
| Battery type | Li-Po |
| Replaceable | No |
| Wireless charging | Yes (15 W) |
| Reverse charging | No |
| Fast charging | Yes (100% in 29 min) |
| Full charging time | 0:29 hr |
| Web browsing | 10:27 hr |
| Watching video | 12:25 hr |
| Gaming | 04:06 hr |
| Standby | 92 hr |
Camera
| Matrix | 48 megapixels |
| Image resolution | 8000 x 6000 |
| Zoom | Digital |
| Flash | Dual LED |
| Stabilization | Digital |
| 8K video recording | Up to 30FPS |
| 4K video recording | Up to 120FPS |
| 1080p video recording | Up to 60FPS |
| Slow motion | 240 FPS (1080p) |
| Angle of widest lens | 140° |
| Lenses | 3 (48 MP + 50 MP + 2 MP) |
| Wide (main) lens |
- 48 MP
- Aperture: f/1.8 - Focal length: 23 mm - Pixel size: 1.12 micron - Sensor: 1/1.43", Sony IMX689 (Exmor-RS CMOS) - Phase autofocus |
| Ultra-wide lens |
- 50 MP
- Aperture: f/2.2 - Focal length: 14 mm - Pixel size: 1 micron - Sensor: 1/1.56", Sony IMX766 (Exmor-RS CMOS) - Phase autofocus |
| Monochrome lens |
- 2 MP
- Aperture: f/2.4 |
| Camera features |
- Bokeh mode
- Pro mode - RAW support |
| Samples | Photo samples of OnePlus 9 from DxOMark |
| Megapixels | 16 megapixels |
| Image resolution | 4920 x 3264 |
| Aperture | f/2.0 |
| Pixel size | 1 microns |
| Sensor type | Exmor-RS CMOS |
| Sensor size | 1/3.06" |
| Video resolution | 1080p (Full HD) at 30 FPS |
DxOMark camera tests
Connectivity
| Wi-Fi standard | Wi-Fi 6 (802.11 a/b/g/n/ac/ax) |
| Wi-Fi features |
- Dual Band
- Wi-Fi Direct - Wi-Fi Hotspot - Wi-Fi Display |
| Bluetooth version | 5.2 |
| Bluetooth features | LE, A2DP |
| USB type | USB Type-C |
| USB version | 3.1 |
| USB features |
- Charging
- USB-Storage mode - OTG |
| GPS | GPS, GLONASS, Beidou, Galileo, SBAS |
| NFC * | Yes |
| Infrared port | No |
| Number of SIM * | 2 |
| Type of SIM card | Nano |
| Multi SIM mode | Standby |
| eSIM support * | No |
| Hybrid slot | No |
| LTE Cat * | 20 |
| 2G network | GSM B2, 3, 5, 8 |
| 3G network | WCDMA B1, 2, 4, 5, 8, 9, 19 |
| 4G network | LTE B1, 2, 3, 4, 5, 7, 8, 12, 13, 17, 18, 19, 20, 25, 26, 28, 30, 32, B38, 39, 40, 41, 46, 48, 66, 71 |
| 5G support | Yes |
Sound
| Speakers | Stereo |
| Headphone audio jack | No |
| FM radio | No |
| Dolby Atmos | Yes |
Speakers test
Other
| Category | Flagship |
| Announced | March 2021 |
| Release date | March 2021 |
| Sensors |
- Barometer
- Proximity sensor - Gyroscope - Accelerometer - Ambient light sensor - Compass - Fingerprint |
*
Disclaimer!
Some specifications of the OnePlus 9 may differ by country or region
