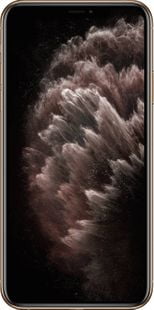

Apple iPhone 11 Pro Max
- Screen: 6.5" OLED - 1242 x 2688
- SoC: Apple A13 Bionic
- Camera: 3 (12 MP + 12 MP + 12 MP)
- Battery: 3969 mAh
- OS: iOS 17
- Weight: 226 grams (7.97 oz)
Review
Full specifications
Detailed specifications, tests, and benchmarks of the Apple iPhone 11 Pro MaxDisplay
| Type | OLED |
| Size | 6.5 inches |
| Resolution | 1242 x 2688 pixels |
| Aspect ratio | 19.5:9 |
| PPI | 458 ppi |
| Refresh rate | 60 Hz |
| Adaptive refresh rate | No |
| Max rated brightness | 800 nits |
| HDR support | Yes, Dolby Vision |
| Screen protection | Tempered glass |
| Screen-to-body ratio | 83.7% |
| Display features | - DCI-P3 |
| RGB color space | 99.6% |
| PWM | 245 Hz |
| Response time | 4.9 ms |
| Contrast | ∞ Infinity |
Design and build
| Height | 158 mm (6.22 inches) |
| Width | 77.8 mm (3.06 inches) |
| Thickness | 8.1 mm (0.32 inches) |
| Weight | 226 g (7.97 oz) |
| Waterproof | IP68 |
| Rear material | Glass |
| Frame material | Metal |
| Colors | Silver, Gold, Gray, Dark gray |
| Fingerprint scanner | No |
Performance
| Chipset | Apple A13 Bionic |
| Max clock | 2650 MHz |
| CPU cores | 6 (2 + 4) |
| Architecture |
- 4 cores at 1.6 GHz: Thunder
- 2 cores at 2.65 GHz: Lightning |
| Lithography process | 7 nanometers |
| Graphics | Apple A13 GPU |
| GPU shading units | 256 |
| GPU clock | 1230 MHz |
| FLOPS | ~629.8 GFLOPS |
Benchmarks
| CPU | 239301 |
| GPU | 351696 |
| Memory | 154684 |
| UX | 184695 |
| Total score | 929177 |
| Max surface temperature | 44.9 °C |
| Stability | 79% |
| Graphics test | 44 FPS |
| Graphics score | 7461 |
Memory
| RAM size | 4 GB |
| Memory type | LPDDR4X |
| Channels | 2 |
| Storage size | 64, 256, 512 GB |
| Storage type | NVMe |
| Memory card | No |
Software
| Operating system | iOS 13 (Can be upgraded to iOS 17) |
Battery
| Capacity | 3969 mAh |
| Max charge power | 18 W |
| Battery type | Li-Ion |
| Replaceable | No |
| Wireless charging | Yes (7.5 W) |
| Reverse charging | No |
| Fast charging | Yes (48% in 30 min) |
| Full charging time | 1:57 hr |
| Web browsing | 11:56 hr |
| Watching video | 16:42 hr |
| Gaming | 07:02 hr |
| Standby | 124 hr |
Camera
| Matrix | 12 megapixels |
| Image resolution | 4032 x 3024 |
| Zoom | Optical, 2x |
| Flash | Quad LED |
| Stabilization | Optical |
| 8K video recording | No |
| 4K video recording | Up to 60FPS |
| 1080p video recording | Up to 60FPS |
| Slow motion | 240 FPS (1080p) |
| Angle of widest lens | 120° |
| Lenses | 3 (12 MP + 12 MP + 12 MP) |
| Wide (main) lens |
- 12 MP
- Aperture: f/1.8 - Focal length: 26 mm - Pixel size: 1.4 micron - Sensor: 1/2.55", Apple iSight Camera (CMOS) - Phase autofocus (Dual Pixel) - Optical stabilization |
| Telephoto lens |
- 12 MP
- Aperture: f/2.0 - Focal length: 52 mm - Pixel size: 1 micron - Sensor: 1/3.4" (CMOS) - Phase autofocus - Optical stabilization |
| Ultra-wide lens |
- 12 MP
- Aperture: f/2.4 - Focal length: 13 mm - Sensor: 1/3.4" (CMOS) |
| Camera features |
- Bokeh mode
- Pro mode - RAW support |
| Megapixels | 12 megapixels |
| Image resolution | 4032 x 3024 |
| Aperture | f/2.2 |
| Sensor type | BSI CMOS |
| Sensor size | 1/3.6" |
| Video resolution | 2160p (4K) at 60 FPS |
DxOMark camera tests
Connectivity
| Wi-Fi standard | Wi-Fi 6 (802.11 a/b/g/n/ac/ax) |
| Wi-Fi features |
- Dual Band
- Wi-Fi Hotspot |
| Bluetooth version | 5 |
| Bluetooth features | LE, A2DP |
| USB type | No |
| USB version | 2 |
| USB features |
- Charging
- USB-Storage mode |
| GPS | GPS, GLONASS, Galileo, QZSS |
| NFC * | Yes |
| Infrared port | No |
| Number of SIM * | 1 |
| Type of SIM card | Nano |
| eSIM support * | Yes |
| Hybrid slot | No |
| LTE Cat * | 18 |
| 2G network | GSM 850 / 900 / 1800 / 1900 |
| 3G network | HSDPA 850 / 900 / 1700(AWS) / 1900 / 2100 |
| 4G network | LTE band 1(2100), 2(1900), 3(1800), 4(1700/2100), 5(850), 7(2600), 8(900), 11(1500), 12(700), 13(700), 17(700), 18(800), 19(800), 20(800), 21(1500), 25(1900), 26(850), 28(700), 29(700), 30(2300), 32(1500), 34(2000), 38(2600), 39(1900), 40(2300), 41(2500), 42(3500), 46, 48, 66(1700/2100) |
| 5G support | No |
Sound
| Speakers | Stereo |
| Headphone audio jack | No |
| FM radio | No |
| Dolby Atmos | Yes |
Speakers test
Other
| Category | Flagship |
| Announced | September 2019 |
| Release date | September 2019 |
| SAR (head) | 0.95 W/kg |
| SAR (body) | 0.99 W/kg |
| Sensors |
- Barometer
- Proximity sensor - Gyroscope - Accelerometer - Ambient light sensor - Compass - Face recognition sensor |
*
Disclaimer!
Some specifications of the iPhone 11 Pro Max may differ by country or region
