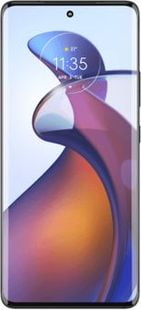

Motorola Edge 30 Fusion
- Screen: 6.55" POLED - 1080 x 2400
- SoC: Qualcomm Snapdragon 888 Plus
- Camera: 3 (50 MP + 13 MP + 2 MP)
- Battery: 4400 mAh
- OS: Android 12
- Weight: 175 grams (6.17 oz)
Review
Full specifications
Detailed specifications, tests, and benchmarks of the Motorola Edge 30 FusionDisplay
| Type | POLED |
| Size | 6.55 inches |
| Resolution | 1080 x 2400 pixels |
| Aspect ratio | 20:9 |
| PPI | 402 ppi |
| Refresh rate | 144 Hz |
| Adaptive refresh rate | Yes |
| Max rated brightness | 600 nits |
| Max rated brightness in HDR | 1100 nits |
| HDR support | Yes, HDR10+ |
| Screen protection | Corning Gorilla Glass 5 |
| Screen-to-body ratio | 90.8% |
| Display features |
- DCI-P3
- Always-On Display - DC Dimming |
| RGB color space | 97.2% |
| PWM | 753 Hz |
| Response time | 1 ms |
| Contrast | ∞ Infinity |
Design and build
| Height | 158.48 mm (6.24 inches) |
| Width | 71.99 mm (2.83 inches) |
| Thickness | 7.45 mm (0.29 inches) |
| Weight | 175 g (6.17 oz) |
| Waterproof | IP52 |
| Rear material | Glass |
| Frame material | Metal |
| Colors | White, Gray, Blue, Red |
| Fingerprint scanner | Yes, in-display |
Performance
| Chipset | Qualcomm Snapdragon 888 Plus |
| Max clock | 2990 MHz |
| CPU cores | 8 (1 + 3 + 4) |
| Architecture |
- 4 cores at 1.8 GHz: Kryo 680 Silver (Cortex-A55)
- 3 cores at 2.42 GHz: Kryo 680 Gold (Cortex-A78) - 1 core at 2.995 GHz: Kryo 680 Prime (Cortex-X1) |
| L3 cache | 4 MB |
| Lithography process | 5 nanometers |
| Graphics | Adreno 660 |
| GPU shading units | 1024 |
| GPU clock | 905 MHz |
| FLOPS | ~1853.4 GFLOPS |
Benchmarks
| CPU | 257604 |
| GPU | 268604 |
| Memory | 150520 |
| UX | 194724 |
| Total score | 864326 |
Memory
| RAM size | 8, 12 GB |
| Memory type | LPDDR5 |
| Memory clock | 3200 MHz |
| Channels | 4 |
| Storage size | 128, 256, 512 GB |
| Storage type | UFS 3.1 |
| Memory card | No |
Software
| Operating system | Android 12 |
| ROM | 13 |
| OS size | 17 GB |
Battery
| Capacity | 4400 mAh |
| Max charge power | 68 W |
| Battery type | Li-Po |
| Replaceable | No |
| Wireless charging | No |
| Reverse charging | No |
| Fast charging | Yes (82% in 30 min) |
| Full charging time | 0:52 hr |
| Web browsing | 09:13 hr |
| Watching video | 11:35 hr |
| Gaming | 04:55 hr |
| Standby | 88 hr |
Camera
| Matrix | 50 megapixels |
| Image resolution | 8192 x 6144 |
| Zoom | Digital |
| Flash | Dual LED |
| Stabilization | Optical |
| 8K video recording | Up to 30FPS |
| 4K video recording | Up to 60FPS |
| 1080p video recording | Up to 60FPS |
| Slow motion | 960 FPS (720p) |
| Angle of widest lens | 120° |
| Lenses | 3 (50 MP + 13 MP + 2 MP) |
| Wide (main) lens |
- 50 MP
- Aperture: f/1.8 - Pixel size: 1 micron - Sensor: 1/1.55", Omnivision OV50A (CMOS) - Phase autofocus - Optical stabilization |
| Ultra-wide lens |
- 13 MP
- Aperture: f/2.2 - Pixel size: 1.12 micron - Sensor: 1/3", SK Hynix HI1336 (CMOS) - Phase autofocus |
| Depth lens |
- 2 MP
- Aperture: f/2.4 - Pixel size: 1.75 micron - Sensor: 1/5", GalaxyCore GC02M1B (CMOS) |
| Camera features |
- Bokeh mode
- Pro mode |
| Megapixels | 32 megapixels |
| Image resolution | 6528 x 4896 |
| Aperture | f/2.5 |
| Pixel size | 0.8 microns |
| Sensor type | ISOCELL CMOS |
| Sensor size | 1/2.8" |
| Video resolution | 2160p (4K) at 30 FPS |
Connectivity
| Wi-Fi standard | Wi-Fi 6E (802.11 a/b/g/n/ac/ax) |
| Wi-Fi features |
- Dual Band
- Wi-Fi MiMO - Wi-Fi Direct - Wi-Fi Hotspot - Wi-Fi Display |
| Bluetooth version | 5.2 |
| Bluetooth features | LE |
| USB type | USB Type-C |
| USB version | 3.1 |
| USB features |
- Charging
- USB-Storage mode - OTG |
| GPS | GPS, GLONASS, Beidou, Galileo, QZSS |
| NFC * | Yes |
| Infrared port | No |
| Number of SIM * | 2 |
| Type of SIM card | Nano |
| Multi SIM mode | Standby |
| eSIM support * | No |
| Hybrid slot | No |
| LTE Cat * | 20 |
| 2G network | GSM B2/3/5/8 |
| 3G network | WCDMA B1/2/4/5/8/19 |
| 4G network | LTE B1/2/3/4/5/7/8/12/13/17/18/19/20/25/26/28/32/38/39/40/41/42/43/66 |
| 5G support | Yes |
Sound
| Speakers | Stereo |
| Headphone audio jack | No |
| FM radio | No |
| Dolby Atmos | Yes |
Speakers test
Other
| Category | Flagship |
| Announced | September 2022 |
| Release date | September 2022 |
| Sensors |
- Proximity sensor
- Gyroscope - Accelerometer - Ambient light sensor - Compass - Fingerprint |
| Bundled charger | Yes, 68 W |
*
Disclaimer!
Some specifications of the Edge 30 Fusion may differ by country or region
