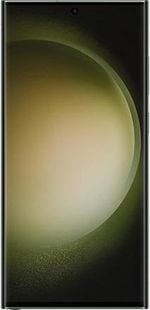

Samsung Galaxy S23 Ultra
- Screen: 6.8" Dynamic AMOLED - 1440 x 3088
- SoC: Snapdragon 8 Gen 2 Mobile Platform for Galaxy
- Camera: 4 (200 MP + 10 MP + 10 MP + 12 MP)
- Battery: 5000 mAh
- OS: Android 13
- Weight: 233 grams (8.22 oz)
Review
We may receive a commission from Amazon for purchases made using the links below, but this has no bearing on our assessment methodology.
Full specifications
Detailed specifications, tests, and benchmarks of the Samsung Galaxy S23 UltraDisplay
| Type | Dynamic AMOLED |
| Size | 6.8 inches |
| Resolution | 1440 x 3088 pixels |
| Aspect ratio | 19.3:9 |
| PPI | 500 ppi |
| Refresh rate | 120 Hz |
| Adaptive refresh rate | Yes |
| Max rated brightness | 850 nits |
| Max rated brightness in HDR | 1750 nits |
| HDR support | Yes, HDR10+ |
| Screen protection | Gorilla Glass Victus 2 |
| Screen-to-body ratio | 89.5% |
| Display features |
- DCI-P3
- Always-On Display |
| RGB color space | 96.9% |
| PWM | 240 Hz |
| Response time | 2 ms |
| Contrast | ∞ Infinity |
Design and build
| Height | 163.4 mm (6.43 inches) |
| Width | 78.1 mm (3.07 inches) |
| Thickness | 8.9 mm (0.35 inches) |
| Weight | 233 g (8.22 oz) |
| Waterproof | IP68 |
| Advanced cooling | Vapor chamber |
| Rear material | Glass |
| Frame material | Metal |
| Colors | White, Black, Gray, Blue, Green, Red, Purple |
| Fingerprint scanner | Yes, in-display |
Performance
| Chipset | Snapdragon 8 Gen 2 Mobile Platform for Galaxy |
| Max clock | 3360 MHz |
| CPU cores | 8 (1 + 2 + 2 + 3) |
| Architecture |
- 3 cores at 2 GHz: Cortex-A510
- 2 cores at 2.8 GHz: Cortex-A710 - 2 cores at 2.8 GHz: Cortex-A715 - 1 core at 3.2 GHz: Cortex-X3 |
| L3 cache | 8 MB |
| Lithography process | 4 nanometers |
| Graphics | Adreno 740 |
| GPU shading units | 2560 |
| GPU clock | 719 MHz |
| FLOPS | ~3481.6 GFLOPS |
Benchmarks
| CPU | 377732 |
| GPU | 604184 |
| Memory | 272107 |
| UX | 262144 |
| Total score | 1506949 |
| Max surface temperature | 34.8 °C |
| Stability | 64% |
| Graphics test | 72 FPS |
| Graphics score | 12153 |
| Web score | 15683 |
| Video editing | 7790 |
| Photo editing | 33992 |
| Data manipulation | 12997 |
| Writing score | 19802 |
Memory
| RAM size | 8, 12 GB |
| Memory type | LPDDR5X |
| Channels | 4 |
| Storage size | 256, 512, 1024 GB |
| Storage type | UFS 4.0 |
| Memory card | No |
Software
| Operating system | Android 13 |
| ROM | One UI 5.1 |
| OS size | 39.9 GB |
Battery
| Capacity | 5000 mAh |
| Max charge power | 45 W |
| Battery type | Li-Po |
| Replaceable | No |
| Wireless charging | Yes (15 W) |
| Reverse charging | Yes, (wireless) |
| Fast charging | Yes (68% in 30 min) |
| Full charging time | 0:59 hr |
| Web browsing | 14:50 hr |
| Watching video | 19:27 hr |
| Gaming | 06:21 hr |
| Standby | 123 hr |
Camera
| Matrix | 200 megapixels |
| Image resolution | 16320 x 12240 |
| Zoom | Optical, 10x |
| Flash | LED |
| Stabilization | Optical |
| 8K video recording | Up to 30FPS |
| 4K video recording | Up to 60FPS |
| 1080p video recording | Up to 60FPS |
| Slow motion | 960 FPS (1080p) |
| Angle of widest lens | 120° |
| Lenses | 4 (200 MP + 10 MP + 10 MP + 12 MP) |
| Wide (main) lens |
- 200 MP
- Aperture: f/1.7 - Focal length: 23 mm - Pixel size: 0.64 micron - Sensor: 1/1.3", Samsung ISOCELL HP2 (ISOCELL Plus CMOS) - Laser autofocus - Optical stabilization |
| Telephoto lens |
- 10 MP
- Aperture: f/4.9 - Focal length: 230 mm - Pixel size: 1.12 micron - Sensor: 1/3.52", Sony IMX754 (Exmor-RS CMOS) - Phase autofocus (Dual Pixel) - Optical stabilization |
| Ultra-wide lens |
- 12 MP
- Aperture: f/2.2 - Focal length: 13 mm - Pixel size: 1.4 micron - Sensor: 1/2.55", Sony IMX564 (Exmor-RS CMOS) - Phase autofocus (Dual Pixel) |
| Camera features |
- Bokeh mode
- Pro mode - RAW support |
| Samples | Photo samples of Samsung Galaxy S23 Ultra from DxOMark |
| Megapixels | 12 megapixels |
| Image resolution | 4000 x 3000 |
| Aperture | f/2.2 |
| Focal length | 26 mm |
| Pixel size | 1.12 microns |
| Sensor type | ISOCELL CMOS |
| Sensor size | 1/3.24" |
| Video resolution | 2160p (4K) at 60 FPS |
DxOMark camera tests
Connectivity
| Wi-Fi standard | Wi-Fi 6E (802.11 a/b/g/n/ac/ax) |
| Wi-Fi features |
- Dual Band
- Wi-Fi MiMO - Wi-Fi Direct - Wi-Fi Hotspot - Wi-Fi Display |
| Bluetooth version | 5.3 |
| Bluetooth features | LE |
| USB type | USB Type-C |
| USB version | 3.2 |
| USB features |
- Charging
- USB-Storage mode - OTG |
| GPS | GPS, GLONASS, Beidou, Galileo, QZSS |
| NFC * | Yes |
| Infrared port | No |
| Number of SIM * | 2 |
| Type of SIM card | Nano |
| Multi SIM mode | Standby |
| eSIM support * | Yes |
| Hybrid slot | No |
| LTE Cat * | 20 |
| 5G support | Yes |
Sound
| Speakers | Stereo |
| Headphone audio jack | No |
| FM radio | No |
| Dolby Atmos | Yes |
Speakers test
Other
| Category | Flagship |
| Announced | February 2023 |
| Release date | February 2023 |
| SAR (head) | 0.96 W/kg |
| SAR (body) | 1.4 W/kg |
| Sensors |
- Hall-effect sensor
- Barometer - Proximity sensor - Gyroscope - Accelerometer - Ambient light sensor - Compass - Fingerprint |
| Bundled charger | Not included |
*
Disclaimer!
Some specifications of the Galaxy S23 Ultra may differ by country or region
