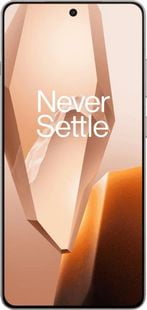

OnePlus Ace 5
- Screen: 6.78" AMOLED - 1264 x 2780
- SoC: Qualcomm Snapdragon 8 Gen 3
- Camera: 3 (50 MP + 8 MP + 2 MP)
- Battery: 6415 mAh
- OS: Android 15
- Weight: 223 grams (7.87 oz)
Review
Scores marked with a red asterisk (*) are approximate, as we currently do not have sufficient test results to make a precise estimation.
Full specifications
Detailed specifications, tests, and benchmarks of the OnePlus Ace 5Display
| Type | AMOLED |
| Size | 6.78 inches |
| Resolution | 1264 x 2780 pixels |
| Aspect ratio | 19.8:9 |
| PPI | 450 ppi |
| Refresh rate | 120 Hz |
| Adaptive refresh rate | Yes (1-120 Hz) |
| Max rated brightness | 1800 nits |
| Max rated brightness in HDR | 4500 nits |
| HDR support | Yes, Dolby Vision |
| Touch sampling rate | 360 Hz |
| Screen protection | Crystal Shield Glass |
| Screen-to-body ratio | 91.2% |
| Display features | - DCI-P3 - Always-On Display - DC Dimming |
Design and build
| Height | 161.72 mm (6.37 inches) |
| Width | 75.77 mm (2.98 inches) |
| Thickness | 8.02 mm (0.32 inches) |
| Weight | 223 g (7.87 oz) |
| Waterproof | IP65 |
| Advanced cooling | Vapor chamber |
| Rear material | Glass |
| Frame material | Metal |
| Colors | Black, Gray, Purple |
| Fingerprint scanner | Yes, in-display |
Performance
| Chipset | Qualcomm Snapdragon 8 Gen 3 |
| Max clock | 3300 MHz |
| CPU cores | 8 (1 + 3 + 2 + 2) |
| Architecture | - 2 cores at 2.27 GHz: Cortex-A520 - 2 cores at 2.96 GHz: Cortex-A720 - 3 cores at 3.15 GHz: Cortex-A720 - 1 core at 3.3 GHz: Cortex-X4 |
| L3 cache | 12 MB |
| Manufacturing | TSMC |
| Lithography process | 4 nanometers |
| Neural processor (NPU) | Hexagon |
| Graphics | Adreno 750 |
| GPU shading units | 1536 |
| GPU clock | 903 MHz |
| FLOPS | ~2774 GFLOPS |
Benchmarks
| CPU | 470559 |
| GPU | 887681 |
| Memory | 462881 |
| UX | 358951 |
| Total score | 2180072 |
Memory
| RAM size | 12, 16 GB |
| Memory type | LPDDR5X |
| Memory clock | 5333 MHz |
| Channels | 2 |
| Storage size | 256, 512, 1024 GB |
| Storage type | UFS 4.0 |
| Memory card | No |
Software
| Operating system | Android 15 |
| ROM | ColorOS 15 |
Battery
| Capacity | 6415 mAh |
| Max charge power | 80 W |
| Battery type | Silicon-Carbon (Si/C) |
| Replaceable | No |
| Wireless charging | No |
| Reverse charging | No |
| Fast charging | Yes (50% in 15 min) |
| Full charging time | 0:44 hr |
Main camera
| Matrix | 50 megapixels |
| Image resolution | 8192 x 6144 |
| Zoom | Digital |
| Flash | LED |
| Stabilization | Optical |
| 8K video recording | No |
| 4K video recording | Up to 60FPS |
| 1080p video recording | Up to 60FPS |
| Slow motion | 240 FPS (1080p) |
| Angle of widest lens | 112° |
| Lenses | 1) Standard: 50 MP 2) Ultrawide: 8 MP 3) Macro: 2 MP |
| Camera features | - Bokeh mode - Pro mode |
| Image resolution | 50 MP |
| Aperture | f/1.8 |
| Focal length | 24 mm |
| Sensor | Sony IMX906 |
| Sensor size | 1/1.56" |
| Pixel size | 1 micron |
| Autofocus | Phase autofocus |
| Stabilization | Optical |
| Image resolution | 8 MP |
| Aperture | f/2.2 |
| Focal length | 16 mm |
| Sensor | Omnivision OV08D10 |
| Sensor size | 1/4.0" |
| Pixel size | 1.12 micron |
| Stabilization | Digital |
| Image resolution | 2 MP |
| Aperture | f/2.4 |
| Stabilization | Digital |
Selfie camera
| Megapixels | 16 megapixels |
| Image resolution | 4608 x 3456 |
| Aperture | f/2.4 |
| Focal length | 24 mm |
| Sensor | Samsung S5K3P9 |
| Sensor size | 1/3" |
| Pixel size | 1 micron |
| Autofocus | No |
| Stabilization | Digital |
| Video resolution | 1080p (Full HD) at 30 FPS |
| Depth sensor (TOF 3D) | No |
Connectivity
| Wi-Fi standard | Wi-Fi 7 (802.11 a/b/g/n/ac/ax/be) |
| Wi-Fi features | - Dual Band - Wi-Fi MiMO - Wi-Fi Direct - Wi-Fi Hotspot - Wi-Fi Display |
| Bluetooth version | 5.4 |
| Bluetooth features | LE |
| USB type | USB Type-C |
| USB version | 2 |
| USB features | - Charging - USB-Storage mode - OTG |
| DisplayPort | No |
| GPS | GPS, GLONASS, Beidou, Galileo |
| NFC* | Yes |
| Infrared port | Yes |
| Number of SIM* | 2 |
| Type of SIM card | Nano |
| Multi SIM mode | Standby |
| eSIM support* | No |
| Hybrid slot | No |
| 2G network | GSM 850/900/1800MHz |
| 3G network | WCDMA 1/4/5/6/8/19 |
| 4G network | LTE 1/3/4/5/8/18/19/26/28A/34/38/39/40/41/42/48/66 |
| 5G support | Yes |
Sound
| Speakers | Stereo |
| Headphone audio jack | No |
| FM radio | No |
Other
| Category | Flagship |
| Announced | December 2024 |
| Release date | December 2024 |
| Launch price | $315 |
| Sensors | - Proximity sensor - Gyroscope - Accelerometer - Ambient light sensor - Compass - Fingerprint |
| Bundled charger | Yes, 80 W |
*Disclaimer! Some specifications of the Ace 5 may differ by country or region
