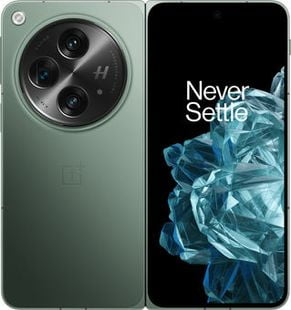

OnePlus Open
- Screen: 7.82" AMOLED - 2268 x 2440
- SoC: Qualcomm Snapdragon 8 Gen 2
- Camera: 3 (48 MP + 64 MP + 48 MP)
- Battery: 4805 mAh
- OS: Android 14
- Weight: 239 grams (8.43 oz)
Review
Scores marked with a red asterisk (*) are approximate, as we currently do not have sufficient test results to make a precise estimation.
Full specifications
Detailed specifications, tests, and benchmarks of the OnePlus OpenDisplay
| Type | AMOLED |
| Size | 7.82 inches |
| Resolution | 2268 x 2440 pixels |
| Aspect ratio | 1.075:1 |
| PPI | 426 ppi |
| Refresh rate | 120 Hz |
| Adaptive refresh rate | Yes |
| Max rated brightness | 1400 nits |
| Max rated brightness in HDR | 2800 nits |
| HDR support | Yes, Dolby Vision |
| Touch sampling rate | 240 Hz |
| Screen protection | Gorilla Glass Victus |
| Screen-to-body ratio | 89.6% |
| Display features | - DCI-P3 - Always-On Display - DC Dimming |
Design and build
| Height | 153.4 mm (6.04 inches) |
| Width | 143.1 mm (5.63 inches) |
| Thickness | 5.8 mm (0.23 inches) |
| Weight | 239 g (8.43 oz) |
| Waterproof | IPX4 |
| Advanced cooling | Vapor chamber |
| Rear material | Glass |
| Frame material | Metal |
| Colors | Black, Green |
| Fingerprint scanner | Yes, in-button |
Performance
| Chipset | Qualcomm Snapdragon 8 Gen 2 |
| Max clock | 3200 MHz |
| CPU cores | 8 (1 + 2 + 2 + 3) |
| Architecture | - 3 cores at 2 GHz: Cortex-A510 - 2 cores at 2.8 GHz: Cortex-A710 - 2 cores at 2.8 GHz: Cortex-A715 - 1 core at 3.2 GHz: Cortex-X3 |
| L3 cache | 8 MB |
| Manufacturing | TSMC |
| Lithography process | 4 nanometers |
| Neural processor (NPU) | Hexagon |
| Graphics | Adreno 740 |
| GPU shading units | 1536 |
| GPU clock | 680 MHz |
| FLOPS | ~2089 GFLOPS |
Benchmarks
| CPU | 369812 |
| GPU | 549821 |
| Memory | 273801 |
| UX | 260021 |
| Total score | 1503915 |
Memory
| RAM size | 16 GB |
| Memory type | LPDDR5X |
| Memory clock | 4200 MHz |
| Channels | 4 |
| Storage size | 512 GB |
| Storage type | UFS 4.0 |
| Memory card | No |
Software
| Operating system | Android 13 (Can be upgraded to Android 14) |
| ROM | OxygenOS 14 |
Battery
| Capacity | 4805 mAh |
| Max charge power | 67 W |
| Battery type | Li-Po |
| Replaceable | No |
| Wireless charging | No |
| Reverse charging | Yes |
| Fast charging | Yes (80% in 30 min) |
| Full charging time | 0:42 hr |
| Web browsing | 09:59 hr |
| Watching video | 13:19 hr |
| Gaming | 05:00 hr |
| Standby | 102 hr |
Main camera
| Matrix | 48 megapixels |
| Zoom | Optical, 3x |
| Flash | LED |
| Stabilization | Optical |
| 8K video recording | No |
| 4K video recording | Up to 60FPS |
| 1080p video recording | Up to 60FPS |
| Slow motion | 480 FPS (720p) |
| Angle of widest lens | 114° |
| Lenses | 1) Standard: 48 MP 2) Telephoto: 64 MP 3) Ultrawide: 48 MP |
| Camera features | - Bokeh mode - Pro mode - RAW support |
| Image resolution | 48 MP |
| Aperture | f/1.7 |
| Focal length | 24 mm |
| Sensor | Sony LYTIA-T808 |
| Sensor size | 1/1.43" |
| Pixel size | 1.12 micron |
| Autofocus | Phase autofocus (Dual Pixel) |
| Stabilization | Optical |
| Image resolution | 64 MP |
| Aperture | f/2.6 |
| Focal length | 70 mm |
| Sensor | Omnivision OV64B |
| Sensor size | 1/2" |
| Pixel size | 0.7 micron |
| Stabilization | Optical |
| Image resolution | 48 MP |
| Aperture | f/2.2 |
| Focal length | 14 mm |
| Sensor | Sony IMX581 |
| Sensor size | 1/2" |
| Pixel size | 0.8 micron |
| Stabilization | Digital |
Selfie camera
| Megapixels | 20 megapixels |
| Aperture | f/2.4 |
| Focal length | 22 mm |
| Sensor | CMOS |
| Sensor size | 1/3.14" |
| Pixel size | 0.7 micron |
| Stabilization | Digital |
| Video resolution | 2160p (4K) at 30 FPS |
| Additional lens | 32 MP, f/22, 1/3.14" |
| Depth sensor (TOF 3D) | No |
Connectivity
| Wi-Fi standard | Wi-Fi 7 (802.11 a/b/g/n/ac/ac/ax/be) |
| Wi-Fi features | - Dual Band - Wi-Fi MiMO - Wi-Fi Direct - Wi-Fi Hotspot - Wi-Fi Display |
| Bluetooth version | 5.3 |
| Bluetooth features | LE |
| USB type | USB Type-C |
| USB version | 3.1 |
| USB features | - Charging - USB-Storage mode - OTG |
| DisplayPort | Yes, DP 1.2 |
| GPS | GPS, GLONASS, Beidou, Galileo, QZSS |
| NFC* | Yes |
| Infrared port | Yes |
| Number of SIM* | 2 |
| Type of SIM card | Nano |
| Multi SIM mode | Standby |
| eSIM support* | Yes |
| Hybrid slot | No |
| LTE Cat* | 20 |
| 2G network | GSM 850/900/1800/1900 |
| 3G network | WCDMA B1, 2, 4, 5, 6, 8, 19 |
| 4G network | LTE B1/2/3/4/5/7/8/12/13/17/18/19/20/25/26/28/30/32/66/71 |
| 5G support | Yes |
Sound
| Speakers | Stereo |
| Headphone audio jack | No |
| FM radio | No |
| Dolby Atmos | Yes |
Other
| Category | Flagship |
| Announced | October 2023 |
| Release date | October 2023 |
| Launch price | $1699 |
| Sensors | - Proximity sensor - Gyroscope - Accelerometer - Ambient light sensor - Compass - Fingerprint |
| Bundled charger | Yes, 67 W |
*Disclaimer! Some specifications of the OnePlus Open may differ by country or region
