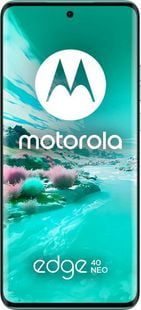

Motorola Edge 40 Neo
- Screen: 6.55" POLED - 1080 x 2400
- SoC: MediaTek Dimensity 7030
- Camera: 2 (50 MP + 13 MP)
- Battery: 5000 mAh
- OS: Android 14
- Weight: 172 grams (6.07 oz)
Review
Full specifications
Detailed specifications, tests, and benchmarks of the Motorola Edge 40 NeoDisplay
| Type | POLED |
| Size | 6.55 inches |
| Resolution | 1080 x 2400 pixels |
| Aspect ratio | 20:9 |
| PPI | 402 ppi |
| Refresh rate | 144 Hz |
| Adaptive refresh rate | Yes (60-144 Hz) |
| Max rated brightness | 550 nits |
| Max rated brightness in HDR | 1300 nits |
| HDR support | Yes, HDR10+ |
| Touch sampling rate | 360 Hz |
| Screen protection | Corning Gorilla Glass 3 |
| Screen-to-body ratio | 90.2% |
| Display features | - DCI-P3 - Always-On Display - DC Dimming |
| RGB color space | 97.7% |
| PWM | 120 Hz |
| Response time | 1 ms |
| Contrast | ∞ Infinity |
Design and build
| Height | 159.63 mm (6.28 inches) |
| Width | 71.99 mm (2.83 inches) |
| Thickness | 7.89 mm (0.31 inches) |
| Weight | 172 g (6.07 oz) |
| Waterproof | IP68 |
| Rear material | Plastic |
| Frame material | Plastic |
| Colors | Black, Blue |
| Fingerprint scanner | Yes, in-display |
Performance
| Chipset | MediaTek Dimensity 7030 |
| Max clock | 2500 MHz |
| CPU cores | 8 (2 + 6) |
| Architecture | - 6 cores at 2 GHz: Cortex-A55 - 2 cores at 2.5 GHz: Cortex-A78 |
| Manufacturing | TSMC |
| Lithography process | 6 nanometers |
| Neural processor (NPU) | MediaTek APU 550 |
| Graphics | Mali-G610 MP3 |
| GPU shading units | 384 |
| GPU clock | 1000 MHz |
| FLOPS | ~768 GFLOPS |
Benchmarks
| CPU | 167880 |
| GPU | 92421 |
| Memory | 117794 |
| UX | 159634 |
| Total score | 537729 |
Recent AnTuTu 10 Results
| Date | Score | User | Memory |
|---|---|---|---|
| ? December 15, 2024 | 537729 | ROF | 8/128 |
| ? December 5, 2024 | 539061 | Kern | 8/256 |
| ? December 5, 2024 | 618739 | RMX_3710HYPE | 12/256 |
| ? December 5, 2024 | 711180 | RMX_3710HYPE | 8/256 |
| ? November 28, 2024 | 543275 | Anonymous | 8gb/256gb |
Samples: 5 of 14
Memory
| RAM size | 8, 12 GB |
| Memory type | LPDDR4X |
| Memory clock | 2133 MHz |
| Channels | 2 |
| Storage size | 128, 256 GB |
| Storage type | UFS 3.1 |
| Memory card | No |
Software
| Operating system | Android 13 (Can be upgraded to Android 14) |
| ROM | My UX |
| OS size | 14 GB |
Battery
| Capacity | 5000 mAh |
| Max charge power | 68 W |
| Battery type | Li-Po |
| Replaceable | No |
| Wireless charging | No |
| Reverse charging | No |
| Fast charging | Yes (82% in 30 min) |
| Full charging time | 0:51 hr |
| Web browsing | 07:17 hr |
| Watching video | 13:01 hr |
| Gaming | 05:09 hr |
| Standby | 110 hr |
Main camera
| Matrix | 50 megapixels |
| Image resolution | 8192 x 6144 |
| Zoom | Digital |
| Flash | LED |
| Stabilization | Optical |
| 8K video recording | No |
| 4K video recording | Up to 30FPS |
| 1080p video recording | Up to 60FPS |
| Slow motion | 240 FPS (1080p) |
| Angle of widest lens | 120° |
| Lenses | 1) Standard: 50 MP 2) Ultrawide: 13 MP |
| Camera features | - Bokeh mode - Pro mode - RAW support |
| Image resolution | 50 MP |
| Aperture | f/1.8 |
| Sensor | Omnivision OV50A |
| Sensor size | 1/1.5" |
| Pixel size | 1 micron |
| Autofocus | Phase autofocus |
| Stabilization | Optical |
| Image resolution | 13 MP |
| Aperture | f/2.2 |
| Pixel size | 1.12 micron |
| Stabilization | Digital |
Selfie camera
| Megapixels | 32 megapixels |
| Image resolution | 6528 x 4896 |
| Aperture | f/2.4 |
| Sensor | CMOS |
| Pixel size | 0.7 micron |
| Autofocus | No |
| Stabilization | Digital |
| Video resolution | 2160p (4K) at 30 FPS |
| Depth sensor (TOF 3D) | No |
Connectivity
| Wi-Fi standard | Wi-Fi 6E (802.11 a/b/g/n/ac/ax) |
| Wi-Fi features | - Dual Band - Wi-Fi MiMO - Wi-Fi Direct - Wi-Fi Hotspot - Wi-Fi Display |
| Bluetooth version | 5.3 |
| Bluetooth features | LE |
| USB type | USB Type-C |
| USB version | 2 |
| USB features | - Charging - USB-Storage mode - OTG |
| GPS | GPS, GLONASS, Galileo |
| NFC* | Yes |
| Infrared port | No |
| Number of SIM* | 1 |
| Type of SIM card | Nano |
| eSIM support* | Yes |
| Hybrid slot | No |
| LTE Cat* | 18 |
| 2G network | GSM B2/3/5/8 |
| 3G network | WCDMA B1/2/4/5/8/19 |
| 4G network | LTE b1/2/3/4/5/7/8/12/13/17/18/19/20/25/26/28/32/38/38 HPUE/39/40/41/41 HPUE/42/43/48/66 |
| 5G support | Yes |
Sound
| Speakers | Stereo |
| Headphone audio jack | No |
| FM radio | No |
| Dolby Atmos | Yes |
Speakers test
Other
| Category | Mid-range |
| Announced | September 2023 |
| Release date | September 2023 |
| Launch price | $399 |
| Sensors | - Proximity sensor - Gyroscope - Accelerometer - Ambient light sensor - Compass - Fingerprint |
| Bundled charger | Yes, 68 W |
*Disclaimer! Some specifications of the Edge 40 Neo may differ by country or region
